Bias Off-The-Road Tires LSM402 - Manufactured in China for Superior Performance

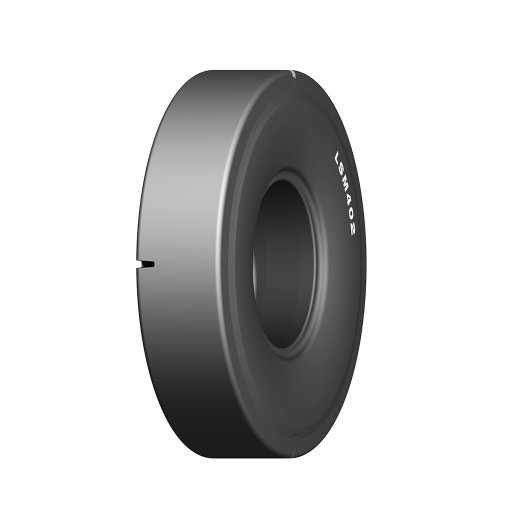

Detail chart

Bias Off The Road Tires LSM402

Main Features :

Smooth tread design eliminateslug tearing for longer wear.

Excellent performance in hard rock underground mines.

Special tear-resistant resin application enhances the cutting resistance of the tread.

Tires Application:

Underground Mine Service

Inquiry Now

Description

Inquiry Now

Related Products

description

Size		Ply Rating	TRA Code	Rim	Section Width (mm)	Overall Diameter （mm）	Tread Depth (mm)	10km/h		Type
Size		Ply Rating	TRA Code	Rim	Section Width (mm)	Overall Diameter （mm）	Tread Depth (mm)	Load Capacity （kg）	Inflation Pressure （kPa）	Type
9.00-20		14	L-5S	7.0	255	1045	35	4375	725	TT
9.00-20		16	L-5S	7.0	255	1045	35	4750	825	TT
10.00-20		14	L-5S	7.5	278	1073	45	3260	670	TT
10.00-20		16	L-5S	7.5	278	1073	45	3535	770	TT
12.00-20		18	L-5S	8.5	315	1175	60	5800	775	TT
12.00-20		20	L-5S	8.5	315	1175	60	6150	830	TT
12.00-24		16	L-5S	8.5	315	1275	55	6150	675	TT
		18	L-5S	8.5	315	1275	55	6500	750	TT
		20	L-5S	8.5	315	1275	55	6900	825	TT
		24	L-5S	8.5	315	1275	55	7500	975	TT
14.00-24		28	L-5S	10.0	375	1420	65	10000	930	TT
14.00-24		32	L-5S	10.0	375	1420	65	10900	1050	TT
NEW	16.00-25	32	L-5S	11.25/2.0	430	1550	75	12500	875	TL
17.5-25		20	L-5S+	14.00/1.5	445	1400	75	8250	575	TT
		24	L-5S+	14.00/1.5	445	1400	75	9250	700	TT/TL
		32	L-5S+	14.00/1.5	445	1400	75	11700	830	TT/TL
20.5-25		32	L-5S	17.00/2.0	520	1550	70	11500	625	TL
23.5-25		32	L-5S	1950/2.5	595	1675	80	13600	550	TL
18.00-25		32	L-5S	13.00/2.5	500	1675	85	15000	750	TL
18.00-25		40	L-5S	13.00/2.5	500	1675	85	17000	950	TL
26.5-25		36	L-5S	22.00/3.0	675	1800	85	18000	600	TL
26.5-25		36	L-5S+	22.00/3.0	675	1800	95	18000	600	TL
